雙金屬溫度計WSSE-481 廠家
中文介紹
WSSE-481雙金屬溫度計是一種廣泛應用于工業領域的溫度測量儀表。它采用雙金屬片作為感溫元件，通過雙金屬片在不同溫度下膨脹系數的差異，帶動指針轉動，從而實現溫度的直觀顯示。
該溫度計的測溫范圍廣泛，可覆蓋-80℃至+500℃，能夠滿足多種工業生產過程中的溫度測量需求。其精度等級為1.5級，能夠提供較為準確的溫度測量結果。此外，WSSE-481雙金屬溫度計的保護管、節頭、鎖緊螺栓等部件均采用1Cr18Ni9Ti材料，具有良好的耐腐蝕性和耐用性。表殼采用鋁板拉伸成型，并經過黑色電泳處理，表蓋與表盒采用環型雙層橡膠圈螺紋密緊結構，整體防水防腐性能出色。

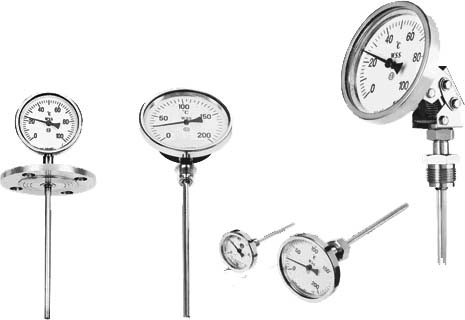

WSSE-481雙金屬溫度計還具備多種安裝固定形式，如可動外螺紋、可動內螺紋、固定螺紋、固定法蘭、卡套螺紋和卡套法蘭等，能夠適應不同的安裝環境和要求。其萬向型的設計使得溫度計的表頭可以靈活調整角度，方便用戶根據實際操作需求進行安裝和讀數。
這種溫度計廣泛應用于機械、化工、輕紡、制藥、食品、船舶等行業的生產過程中，用于測量液體、蒸汽和氣體介質的溫度。與傳統的玻璃水銀溫度計相比，WSSE-481雙金屬溫度計具有無汞害、易讀數、牢固耐用等優點。
English Introduction
The WSSE-481 bimetallic thermometer is a widely used temperature measuring instrument in industrial fields. It uses bimetallic strips as the temperature sensing elements. The temperature is intuitively displayed through the rotation of the pointer, which is driven by the difference in expansion coefficients of the bimetallic strips at different temperatures.
The thermometer has a wide temperature measuring range, covering from -80℃ to +500℃, which can meet the temperature measurement needs of various industrial production processes. Its accuracy grade is 1.5, providing relatively accurate temperature measurement results. In addition, the protective tube, joint, locknut and other components of the WSSE-481 bimetallic thermometer are made of 1Cr18Ni9Ti material, which has good corrosion resistance and durability. The casing is made of aluminum plate by drawing process and treated with black electrophoretic coating. The cover and box of the thermometer are tightly sealed with double-layer rubber rings and screw threads, providing excellent waterproof and corrosion-resistant performance.
The WSSE-481 bimetallic thermometer also has a variety of installation and fixing forms, such as movable external threads, movable internal threads, fixed threads, fixed flanges, compression fittings and compression flanges, which can adapt to different installation environments and requirements. The universal joint design of the thermometer allows the head to be flexibly adjusted to different angles, facilitating installation and reading according to actual operating needs.
This type of thermometer is widely used in the production processes of industries such as machinery, chemical engineering, textile, pharmaceutical, food and shipping, for measuring the temperature of liquid, steam and gas media. Compared with traditional mercury thermometers, the WSSE-481 bimetallic thermometer has the advantages of being mercury-free, easy to read and durable.
雙金屬溫度計
wss-561，wss-461，wss-552，wss-452，WSS-551，wss-451，wss-582，wss-482，wss-581，wss-481，wss-512，wss-412，wss-312，wss-511，wss-411，wss-311，wss-502，WSS-402，wss-302，wss-501，wss-401，WSS-301，WSSXP-481，WSSXE-481，WSSXP-411，WSSXE-411，WSSXP-401，WSSXE-401，WSSP-581，WSSP-481，WSSP-511，WSSP-411，WSSP-501，WSSP-401，WSSE-581，WSSE-481，WSSE-511，WSSE-411，WSSE-501，WSSE-401，WSS-583L
工作原理
雙金屬溫度計的工作原理是利用二種不同溫度膨脹系數的金屬，為提高測溫靈敏度，通常將金屬片制成螺旋卷形狀，當多層金屬片的溫度改變時，各層金屬膨脹或收縮量不等，使得螺旋卷卷起或松開。
由于螺旋卷的一端固定而另一端和一可以自由轉動的指針相連，因此，當雙金屬片感受到溫度變化時，指針即可在一圓形分度標尺上指示出溫度來。這種儀表的測溫范圍是200~650℃，允許誤差均為標尺兩程的1%左右。
概述
雙金屬溫度計的英文名稱是bimetal thermometer;bimetallic thermometer，是一種適合測量中低溫的現場檢測儀表，可直接測量各種生產過程中的液體、蒸汽和氣體介質溫度。
雙金屬溫度計主要的元件是一個用兩種或多種金屬片疊壓在一起組成的多層金屬片，利用兩種不同金屬在溫度改變時膨脹程度不同的原理工作的。是基于繞制成環性彎曲狀的雙金屬片組成。一端受熱膨脹時，帶動指針旋轉，工作儀表便顯示出熱電勢所應的溫度值。
|
