拉繩開關XTD-PK 供應
產品概述
拉繩開關XTD-PK是一種專為輸送機系統設計的緊急停機保護裝置，適用于皮帶輸送機、斗式提升機、堆料/取料系統等多種設備。當現場發生緊急事故時，可通過拉動沿線安裝的鋼絲繩快速觸發開關，實現設備緊急停機，有效保護人身安全和設備完整性。該產品采用雙向觸動設計，既可安裝在輸送機中間位置，也可置于兩端，安裝靈活。外殼采用高強度鑄鋁材質，具備防風雨特性，適應惡劣環境長期使用。15
結構與性能特點
XTD-PK采用雙軸承傳動結構和不銹鋼操作桿設計，確保動作靈敏且耐磨損。內部配置自清潔觸點微動開關，觸點額定值為16A/250V AC，提供二常開二常閉觸點組合。外殼防護等級達IP65，能有效防止粉塵和流水侵蝕，適用于-20℃~+60℃的工作環境。產品附帶鋼絲繩、繩夾及支撐螺栓等完整配件，安裝時需每隔3米設置托環支撐鋼絲繩，水平最大間距為40米，傾斜工況下為30米，以保持張力均衡。124
應用場景
該開關廣泛應用于冶金、煤炭、水泥、電力、港口及化工等行業的散料輸送設備中，如常規皮帶輸送機、梭式輸送機、輪船裝卸系統等。其雙向觸發機制允許從任意位置拉動鋼絲繩發送停機信號，尤其適合需要快速響應事故的長距離輸送場景。例如，在礦山或電廠中，可沿輸送機兩側布置多組XTD-PK開關，形成全覆蓋的安全保護網絡。2611
安裝與維護
安裝時需將開關固定于輸送機兩側檢修通道附近，確保操作便捷。鋼絲繩需采用直徑Φ4mm的涂塑材質，并通過緊線器調整松緊度。維護時需定期清潔外殼，避免粉塵堆積超過3mm厚度。對于爬坡段輸送機，建議縮短開關間距以降低鋼絲繩自重影響。產品無需額外潤滑，整體式蓋板設計便于接線和調整，無需拆卸開關即可完成日常檢查。4626
產品優勢
XTD-PK以高穩定性和長壽命為核心優勢，微動開關機械壽命達50萬次，動作角度為15°~75°可調。鑄鋁殼體經特殊表面處理，兼具輕量化與抗腐蝕性能。其醒目的顏色設計（黑色臂桿搭配黃色/銀色外殼）便于識別工作狀態。手動杠桿復位功能可鎖定停機位置，防止誤啟動，進一步提升檢修安全性。2426
English Product Description
Product Overview
The XTD-PK pull-wire switch is an emergency stop protection device designed for conveyor systems, including belt conveyors, bucket elevators, and stacking/reclaiming systems. In case of emergencies, pulling the installed wire rope along the equipment will immediately trigger the switch to halt operation, ensuring personnel safety and preventing mechanical damage. Its bidirectional activation allows flexible installation at both intermediate or terminal positions of the conveyor. The durable cast aluminum housing provides weather resistance for long-term use in harsh environments.
Design & Features
Equipped with a dual-bearing transmission mechanism and stainless steel lever, the XTD-PK ensures responsive actuation and wear resistance. It integrates self-cleaning micro-switches with contacts rated at 16A/250V AC (2NO+2NC). The IP65-rated housing effectively blocks dust and water ingress, suitable for temperatures ranging from -20℃ to +60℃. Complete accessories include galvanized wire ropes, clamps, and support bolts. Installation requires rope supports every 3 meters, with max span distances of 40m (horizontal) or 30m (inclined).
Applications
Ideal for bulk material handling in industries like metallurgy, mining, cement, and power plants, this switch is compatible with diverse equipment such as shuttle conveyors and ship loaders. Its bidirectional trigger enables emergency stops from any point along the conveyor line, making it critical for long-distance transport safety. For example, multiple XTD-PK units can be deployed along both sides of conveyors in mining sites to create a comprehensive safety network.
Installation & Maintenance
Mount the switch on accessible brackets near conveyor walkways. Use Φ4mm plastic-coated wire ropes tensioned via turnbuckles. Regular maintenance involves cleaning the housing to prevent dust accumulation exceeding 3mm. For inclined conveyors, closer switch spacing is recommended to offset rope sag. The tool-free cover design simplifies wiring adjustments without disassembly.
Key Advantages
The XTD-PK offers exceptional reliability with a mechanical lifespan exceeding 500,000 cycles and adjustable actuation angles (15°~75°). The lightweight yet corrosion-resistant aluminum housing features high-visibility color coding (black arm/yellow body) for status identification. Manual lever reset functionality locks the stop position to prevent accidental restarts during maintenance.
All technical descriptions are based on standard product configurations and may vary per project requirements. 1426
拉繩開關

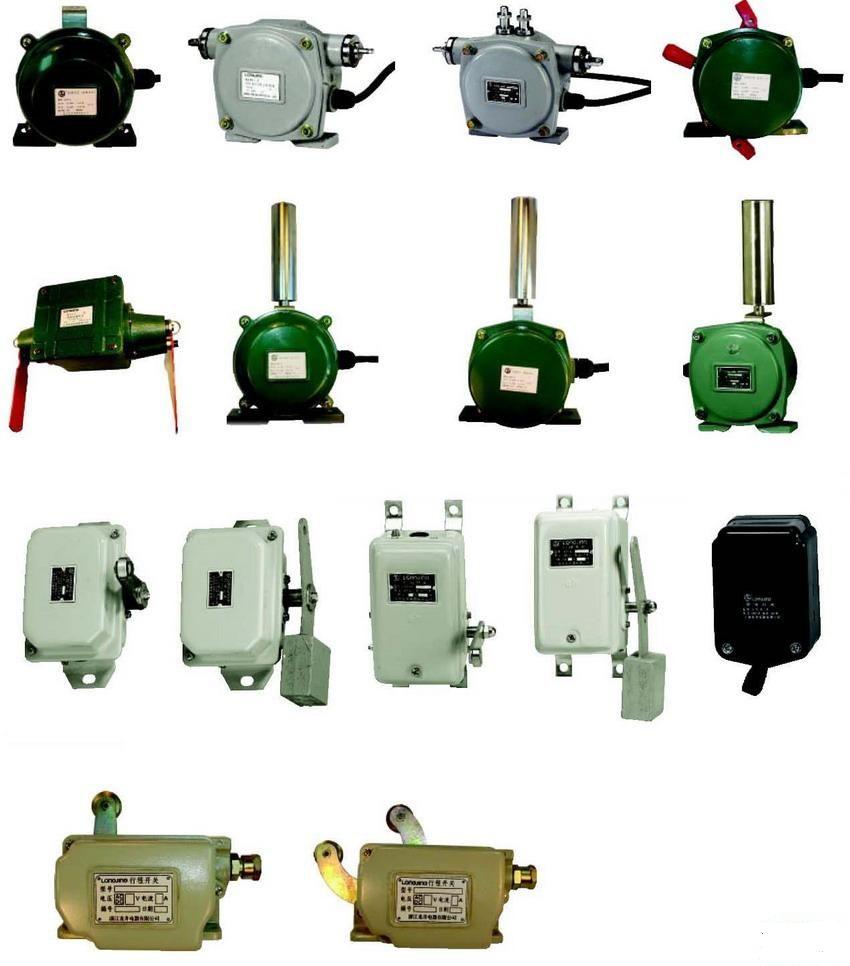

JKPT1，JKPT2，JLK2-S，JLK3-S，JSB-KPP，JY3/PK-12-30，JJLK1-AW，JSB/KLS-1，JSB/KLS-2，JSB/KPP-12-30，JSB/KPP12-30，LP2-2，LL-A，LX-52，LXA-01GKH-T1-A，LXA-01GKH-T2-A，LXA-02GKH-T1-F，LXA-02GKH-T2-F，LXA-02GKH-T2-A，LS-I，LS-II，L18-1A，PK-10-45，PLS，SPS-2D，SLSFT2系列，XDFL2-ZS，XLLS-D，XTD-LS，XTD-PK，XTD-SH，XTD-SJ，XDT-SL，XTD-ZL，YLXA-10A，YH25-1，YLSD-2，ZS71，ZS73，ZS75，HFKLT2系列，GYLS-I，GRB-19150，GRB-17088，GRB-19670，F(xiàn)KLT2系列，DLK2-15AD-H，DLK2-15B-H，DLK2-15A ,，BLK-2，BLK-1，
拉繩開關（Pull Cord Switch）俗稱“緊急停機開關”。作用于帶式輸送現場需要停機時，通過開關動作使輸送機停機。
適用范圍：
拉繩開關廣泛用于冶金、煤炭、水泥、采礦、電力、港埠、化工等域的各種專門從事散料輸送的輸送設備。
簡介
拉繩開關分為手動復位和自動復位兩種，需要達到國家規定IP等級。
自動復位：動作后后能自動回到初始位置，可能會造成誤差啟動。
手動復位：動作后有自鎖裝置能保持在操作位置上，需要手動操作復位手柄可使其返回初始位置。
拉繩開關是帶式輸送機必備的安全保護裝置，防止事故的擴大而帶來重大損失。由于安裝方便,開關轉換可靠,在帶式運輸現場得到廣泛的應用。
結構和基本原理
拉繩開關由拉桿、復位柄、凸輪、鎖槽及微動開關等組成。
拉繩開關安裝于皮帶輸送機的兩側的機架上，用鋼絲繩沿著輸送機兩側把開關連接起來。當輸送帶設備發生緊急事故時，在現場沿線任意處拉動鋼絲繩，鋼絲繩牽動驅動臂旋轉，通過傳動軸帶動扭力彈簧使精密凸輪發生位移，驅動微動開關切斷控制線路，使得輸送機停止運行。
安裝和調整
拉繩開關應安裝在輸送機兩邊具有檢修通道的地方，安裝位置應確保檢修人員在緊急情況下操作方便。
1、將拉繩開關固定在機架上。
2、一側的兩臺開關之間距離為50m左右，采用直徑為Φ4的鋼絲繩連接，松緊應適度。
3、為減小鋼絲繩自重對開關啟動的影響，每隔3m在機架上裝一個托環，以支撐鋼絲繩。
4、鋼絲繩的另一端系在拉簧上(用繩扣固定),在不影響正常使用下用緊線器將兩側拉繩張緊,并確保兩側張力均衡。
（注：對于爬坡段輸送機機.應盡量縮短開關間距及拉繩長度。）
|
