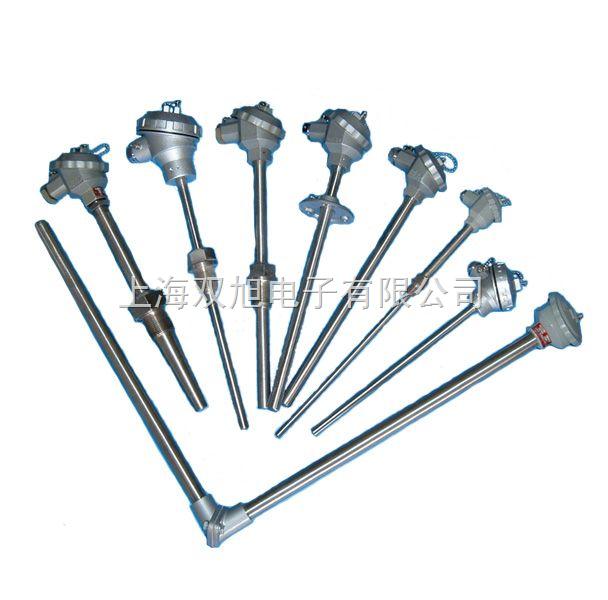

裝配式薄膜鉑熱電阻WZP2-621產品介紹

一、中文版

產品概述：
WZP2-621型裝配式薄膜鉑熱電阻是基于先進傳感技術開發的高精度溫度檢測元件，采用特殊工藝將鉑金屬薄膜沉積于陶瓷基板表面，結合優化的裝配結構設計，適用于工業過程控制、環境監測及精密儀器配套等領域。該產品通過模塊化裝配工藝實現快速安裝與維護，滿足多樣化場景的溫度測量需求。

技術特點：

1. 靈敏響應特性：薄膜傳感元件具有毫秒級溫度響應速度，可精準捕捉快速變化的溫度信號
2. 可靠防護設計：不銹鋼外殼提供IP65防護等級，內置抗震緩沖結構，適應振動工況環境
3. 寬域線性輸出：在-50℃至500℃量程范圍內保持優良的線性度，輸出信號穩定可靠
4. 適配性強：提供M12/M16/M20等多規格螺紋接口，支持三線制/四線制接線方式選擇
5. 長周期穩定性：經5000小時加速老化測試，阻值漂移量小于0.02%/年

應用領域：
• 工業鍋爐及管道溫度監控
• 暖通空調系統冷媒檢測
• 實驗室精密溫控設備
• 食品加工滅菌溫度記錄
• 新能源汽車電池?zé)峁芾?/p>

技術參數：
測量范圍：-50~500℃（可定制擴展）
標稱阻值：Pt100（0℃時100Ω）
允差等級：Class A/B可選
熱響應時間：τ0.5≤3s（液體介質）
引線形式：鍍銀銅芯耐高溫導線
電氣連接：航空插頭/端子排可選

服務支持：
提供個性化參數定制服務，支持特殊尺寸、連接方式及輸出協議匹配。完善的售后服務體系包含技術咨詢、產品選型指導及現場應用支持，確保設備全生命周期穩定運行。

二、English Version

Product Overview:
The WZP2-621 modular thin-film platinum RTD is a precision temperature sensor developed with advanced thin-film deposition technology. Its ceramic substrate integrated with platinum sensing layer and modular assembly structure ensures reliable performance in industrial process control, environmental monitoring and precision instrumentation applications.

Technical Advantages:

1. Fast response characteristic achieves millisecond-level temperature detection
2. Robust stainless steel housing with IP65 rating withstands harsh environments
3. Excellent linearity maintains measurement accuracy across -50℃ to 500℃ range
4. Multiple interface options including M12/M16/M20 threaded connections
5. Long-term stability verified through 5000-hour accelerated aging tests

Application Scenarios:
• Temperature monitoring in power generation systems
• HVAC refrigerant flow measurement
• Thermal control of medical sterilization equipment
• Process temperature tracking in food production
• Energy storage system thermal management

Technical Specifications:
Measuring range: -50~500℃ (extendable)
Resistance value: Pt100 (100Ω at 0℃)
Tolerance class: Class A/B selectable
Response time: τ0.5≤3s (in liquid)
Lead wire: Silver-plated high-temp cable
Connection: Aviation plug/terminal block

Service Support:
Customization services include dimensional modification, special connectors and communication protocol integration. Comprehensive technical support covers product selection guidance, installation consultation and field application optimization throughout equipment lifecycle.
