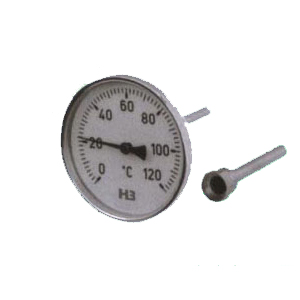

熱套式雙金屬溫度計WSS-483L 廠家
中文介紹
WSS-483L熱套式雙金屬溫度計是一種高性能的溫度測量儀表，適用于多種工業場合。該溫度計采用熱套式結構設計，可配合不同形式的安裝套管，滿足不同壓力等級的要求。其測溫范圍廣泛，能夠直接測量-80℃至+500℃的液體、蒸汽、氣體介質以及固體表面的溫度。
該溫度計的保護管、節頭、鎖緊螺栓等部件均采用1Cr18Ni9Ti材料，表殼則采用鋁板拉伸成型，并經過黑色電泳處理，具有良好的防水和防腐性能。其表蓋與表盒采用環型雙層橡膠圈螺紋密封鎖緊結構，進一步增強了儀表的密封性和耐用性。
WSS-483L雙金屬溫度計的精度等級為1.0級或1.5級，標度盤公稱直徑為100mm，熱響應時間不超過40秒，防護等級達到IP55。其連接尺寸為M20x1.5或NPT1/2。
English Introduction
The WSS-483L bimetallic thermometer is a high-performance temperature measuring instrument suitable for a variety of industrial applications. It features a heat-sleeve structure that can be used with different types of installation sleeves to meet various pressure requirements. The thermometer is capable of directly measuring temperatures ranging from -80℃ to +500℃ for liquids, steam, gases, and solid surfaces.
The thermometer s protective tube, joints, and locking bolts are made of 1Cr18Ni9Ti material, while the housing is formed by aluminum plate drawing and treated with black electrophoretic coating, providing excellent waterproof and corrosion-resistant properties. The double-layer rubber ring screw thread sealing structure of the cover and housing further enhances the instrument s sealing and durability.
The WSS-483L bimetallic thermometer has an accuracy class of 1.0 or 1.5, with a nominal scale diameter of 100mm. The thermal response time is no more than 40 seconds, and the protection level reaches IP55. The connection dimensions are M20x1.5 or NPT1/2.
熱套式雙金屬溫度計
WSSX-403L，WSSX-483L，WSS-483L，WSS-413L，WSS-413L，WSS-503L，WSS-403L，WSSX-483S，WSSX-413S，WSS-483S，WSS-513S，WSS-413S，WSS-503S，WSS-403S，WSSX-486
應用
熱套式雙金屬溫度計可配合各式安裝套管，滿足不同壓力等級要求�？梢灾苯訙y量各種生產過程中的 -80-+500 ℃范圍內液體、蒸汽和氣體介質以及固體表面測溫。
主要技術參數
標度盤公稱直徑：100
精度等級：1.0、1.5
連接尺寸：M20x1.5、NPT1/2
熱響應時間：≤40s
防護等級：IP55
注：
可配各式安裝套管，熱安裝套管形式詳見熱安裝套管；
保護管其余材質根據協議訂貨；
打﹡表示公稱壓力根據法蘭壓力等級而訂。
選型須知
型號
精度等級
測溫范圍
安裝固定形式
熱安裝套管形式
插入長度
例A：萬向型雙金屬溫度計，測溫范圍0-400℃。熱安裝套管TH01F，插入長度300mm.即為：WSS-483TH01F 0-400℃ l=300mm.
|
