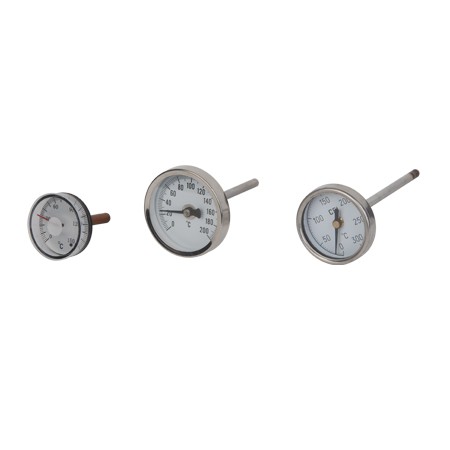

雙金屬溫度計WSSE-511 供應
產品概述
雙金屬溫度計WSSE-511是一款集現場指示與信號遠傳功能于一體的工業級測溫儀表，專為中低溫環境設計。該產品采用熱電偶/熱電阻與雙金屬溫度計的一體化結構，既能通過表盤直觀顯示溫度，又能將電信號遠程傳輸至控制系統，適用于-80℃至+500℃范圍內的液體、蒸汽及氣體介質溫度測量。其核心感溫元件由兩種膨脹系數不同的金屬片復合而成，通過熱感應驅動指針精確指示溫度變化，兼具機械式儀表的可靠性和電子式儀表的智能化優勢。520
技術特點
產品采用全不銹鋼保護管和防腐蝕表殼設計，防護等級達IP65，可應對石油化工、冶金、食品加工等行業的復雜工況。徑向型彎管結構使表頭與測溫點呈90°角，便于多角度觀察讀數；抽芯式機芯支持不停機維護，顯著降低停機損失。表盤直徑可選φ100mm或φ150mm，精度等級1.5級，響應時間≤40秒，能快速捕捉溫度波動。支持M27×2等多種螺紋安裝方式，插入深度75-2000mm靈活可選，滿足不同管道和設備安裝需求。1611
應用場景
WSSE-511廣泛應用于鍋爐管道、儲罐設備、反應釜等工業場景的溫度監控，特別適合需要本地指示與遠程監控同步的場合。在熱力系統中，其長頸設計可穿透保溫層直接顯示外部溫度；在食品制藥領域，無汞害特性符合衛生安全要求；化工領域則受益于其抗震設計和耐腐蝕性能。產品通過模塊化組合可實現電接點報警、夜光顯示等擴展功能，適配自動化產線的溫度聯鎖控制需求。41417
Product Introduction
The WSSE-511 Bimetal Thermometer integrates local temperature indication with remote signal transmission capability, designed for industrial applications in -80℃ to +500℃ environments. Its spiral-wound bimetal strip sensing element drives the pointer to display temperature changes mechanically, while the built-in thermocouple/RTD simultaneously converts thermal signals into electrical outputs for control systems. The radial-type design features a 90° angled head for improved visibility in confined spaces.520
Key Features
Constructed with 1Cr18Ni9Ti stainless steel protection tube and anti-corrosion aluminum casing, this thermometer achieves IP65 protection against dust and water jets. The interchangeable core design allows quick maintenance without process interruption. Available in 100mm or 150mm dial sizes with 1.5% full-scale accuracy, it provides ≤40s response time for dynamic temperature tracking. Multiple installation options include movable M27×2 threaded joints, with probe lengths customizable from 75mm to 2000mm to suit varied pipe diameters. The scratch-resistant dial features clear刻度 marking and corrosion-resistant pointer.61116
Typical Applications
Ideal for simultaneous local/remote monitoring in boilers, reactors and storage tanks across petrochemical, pharmaceutical and energy industries. The extended neck version penetrates insulation layers for external readings in heat distribution systems. Food-grade applications benefit from its mercury-free design, while vibration-resistant construction ensures reliability in compressor stations. Modular accessories enable auxiliary functions like contact alarms or luminescent dials for low-light environments.41723
雙金屬溫度計
wss-561，wss-461，wss-552，wss-452，WSS-551，wss-451，wss-582，wss-482，wss-581，wss-481，wss-512，wss-412，wss-312，wss-511，wss-411，wss-311，wss-502，WSS-402，wss-302，wss-501，wss-401，WSS-301，WSSXP-481，WSSXE-481，WSSXP-411，WSSXE-411，WSSXP-401，WSSXE-401，WSSP-581，WSSP-481，WSSP-511，WSSP-411，WSSP-501，WSSP-401，WSSE-581，WSSE-481，WSSE-511，WSSE-411，WSSE-501，WSSE-401，WSS-583L
工作原理
雙金屬溫度計的工作原理是利用二種不同溫度膨脹系數的金屬，為提高測溫靈敏度，通常將金屬片制成螺旋卷形狀，當多層金屬片的溫度改變時，各層金屬膨脹或收縮量不等，使得螺旋卷卷起或松開。
由于螺旋卷的一端固定而另一端和一可以自由轉動的指針相連，因此，當雙金屬片感受到溫度變化時，指針即可在一圓形分度標尺上指示出溫度來。這種儀表的測溫范圍是200~650℃，允許誤差均為標尺兩程的1%左右。
概述
雙金屬溫度計的英文名稱是bimetal thermometer;bimetallic thermometer，是一種適合測量中低溫的現場檢測儀表，可直接測量各種生產過程中的液體、蒸汽和氣體介質溫度。
雙金屬溫度計主要的元件是一個用兩種或多種金屬片疊壓在一起組成的多層金屬片，利用兩種不同金屬在溫度改變時膨脹程度不同的原理工作的。是基于繞制成環性彎曲狀的雙金屬片組成。一端受熱膨脹時，帶動指針旋轉，工作儀表便顯示出熱電勢所應的溫度值。
|
