熱套式雙金屬溫度計WSS-413L 廠家
產品概述
熱套式雙金屬溫度計WSS-413L是一款專為工業現場測溫設計的高可靠性儀表，適用于液體、蒸汽、氣體介質及固體表面的溫度測量。其核心特點是可配合多種安裝套管，適應不同壓力等級需求，測溫范圍覆蓋-80℃至+500℃，滿足石油、化工、電力等行業的復雜工況要求。產品采用機械式感應原理，無需外部電源，具有現場直讀、抗振動、耐腐蝕等優勢，尤其適合高溫高壓環境下的長期穩定運行。81028
技術特點
該溫度計采用雙層金屬片作為感溫元件，通過熱脹冷縮原理驅動指針顯示溫度值。標度盤公稱直徑分為100mm和150mm兩種規格，精度等級為1.5級，響應時間≤40秒。保護管材質可選1Cr18Ni9Ti不銹鋼或哈氏合金，確保在強腐蝕性環境中穩定工作。連接方式提供M20×1.5螺紋或NPT1/2法蘭選項，安裝靈活性高。徑向型設計使讀數視角更符合人體工程學，同時支持萬向調節以適應不同安裝角度。3612
應用場景
WSS-413L廣泛應用于熱力管道、反應釜、鍋爐系統等設備中的溫度監測。其熱套式結構能有效隔離介質壓力，配合法蘭連接形式可承受15-40MPa的高壓環境。典型應用包括煉油廠的裂解裝置、化工廠的蒸汽換熱系統以及制藥行業的發酵罐溫度監控。產品在-80℃低溫至500℃高溫區間內均能保持線性精度，且防護等級達到IP55，可抵御粉塵和水霧侵入。1418
Product Overview
The WSS-413L Sheath-mounted Bimetallic Thermometer is a robust industrial instrument designed for temperature measurement of liquids, vapors, gases, and solid surfaces. With a measurement range spanning from -80°C to +500°C, it excels in demanding applications across petrochemical, power generation, and process industries. The device features interchangeable installation sleeves to accommodate varying pressure ratings, ensuring adaptability in complex piping systems. Its mechanical operation requires no external power, offering direct reading capability with exceptional resistance to vibration and corrosive media. 101528
Key Features
The thermometer utilizes a bimetallic coil as sensing element, where thermal expansion drives the pointer movement. The dial comes in 100mm or 150mm diameters with 1.5% accuracy and ≤40-second response time. Constructed with 1Cr18Ni9Ti stainless steel or Hastelloy protection tubes, it withstands aggressive chemical environments. Installation options include M20×1.5 threaded or NPT1/2 flanged connections, while the radial-style casing provides optimal readability. The adjustable orientation design allows flexible mounting positions without compromising measurement accuracy. 3620
Typical Applications
Ideal for high-pressure systems like thermal pipelines, reactors, and boiler plants, the WSS-413L isolates process pressure through its sheath-mounted structure. Flanged versions support operations up to 40MPa, making it suitable for refinery cracking units, steam exchangers, and pharmaceutical fermentation tanks. The instrument maintains consistent performance across extreme temperatures (-80°C to 500°C) with IP55 protection against dust and water spray, ensuring long-term reliability in harsh conditions. 41218

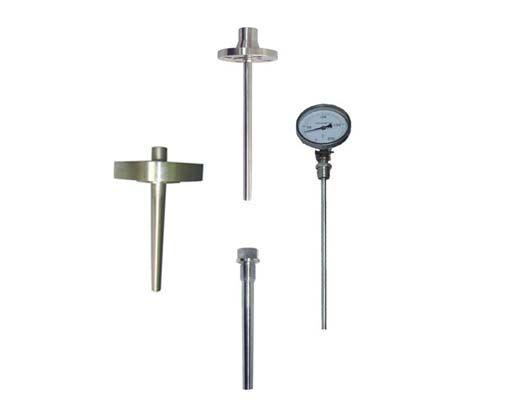

熱套式雙金屬溫度計
WSSX-403L，WSSX-483L，WSS-483L，WSS-413L，WSS-413L，WSS-503L，WSS-403L，WSSX-483S，WSSX-413S，WSS-483S，WSS-513S，WSS-413S，WSS-503S，WSS-403S，WSSX-486
應用
熱套式雙金屬溫度計可配合各式安裝套管，滿足不同壓力等級要求�？梢灾苯訙y(cè)量各種生產過程中的 -80-+500 ℃范圍內液體、蒸汽和氣體介質以及固體表面測溫。
主要技術參數
標度盤公稱直徑：100
精度等級：1.0、1.5
連接尺寸：M20x1.5、NPT1/2
熱響應時間：≤40s
防護等級：IP55
注：
可配各式安裝套管，熱安裝套管形式詳見熱安裝套管；
保護管其余材質根據協議訂貨；
打﹡表示公稱壓力根據法蘭壓力等級而訂。
選型須知
型號
精度等級
測溫范圍
安裝固定形式
熱安裝套管形式
插入長度
例A：萬向型雙金屬溫度計，測溫范圍0-400℃。熱安裝套管TH01F，插入長度300mm.即為：WSS-483TH01F 0-400℃ l=300mm.
|
