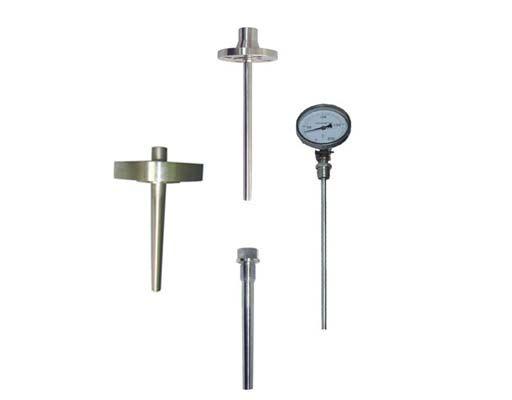

熱套式雙金屬溫度計 WSS-483S 產品介紹
【中文版】
產品概述
WSS-483S型熱套式雙金屬溫度計是一款專為工業領域設計的高性能溫度測量儀表。該產品采用熱套保護管與主體分體式結構設計，能有效應對高溫高壓工況下的溫度監測需求。憑借其可靠的機械性能和穩定的溫度響應特性，廣泛應用于各類工業設備的過程控制環節。
核心特點
-
強化型熱套結構
采用錐形螺紋連接工藝，通過熱套保護管與設備管道的剛性連接設計，有效提升儀表在高壓流體介質中的抗沖擊能力。保護管材質可根據工況需求選擇304/316不銹鋼或其他特種合金。
-
寬域溫度監測
測量范圍覆蓋-50℃至500℃區間，通過特殊設計的雙金屬螺旋片結構，可確保在不同溫度區段保持穩定的線性輸出特性。表盤采用270°廣角刻度布局，支持精確到1.5%滿量程的指示精度。
-
環境適應性設計
全密閉式表殼結構符合IP65防護等級要求，內置抗震緩沖組件，可有效緩解機械振動對測量精度的影響。表面經靜電噴塑處理的鋁合金殼體，具備良好的耐腐蝕特性。
-
便捷安裝維護
分體式結構支持熱套保護管與表頭的單獨安裝調試，方便設備運行過程中的檢修更換。提供軸向/徑向兩種表頭安裝方向選擇，適配不同工況的觀察需求。
適用范圍
本產品適用于石油化工、電力能源、機械制造等行業的設備溫度監控，特別適用于管道系統、反應容器、熱交換裝置等需要長期可靠溫度監測的工業場景�？杉嫒菡羝�(dǎo)熱油、壓縮氣體等多種介質的溫度測量。
技術參數
測量范圍：-50-50/0-100/0-200/0-300/0-400/0-500℃（可選）
精度等級：±1.5%FS
保護管直徑：Φ12/Φ16mm（可選）
連接螺紋：M27×2/G3/4"NPT（可選）
環境溫度：-20～80℃
服務支持
提供定制化參數配置服務，可根據具體應用場景匹配最佳的溫度測量方案。完善的售后服務體系確保產品全生命周期內的技術支持。
【English Version】
Product Overview
The WSS-483S Thermal Sleeve Bimetal Thermometer is a high-performance temperature measurement instrument specifically engineered for industrial applications. Featuring a split structure design with separable thermal sleeve and main body, this product demonstrates excellent adaptability in high-temperature and high-pressure operating conditions. Its reliable mechanical performance and stable temperature response characteristics make it ideal for process control in various industrial equipment.
Key Features
-
Reinforced Thermal Sleeve Structure
The conical thread connection design ensures rigid coupling between the thermal sleeve protector and equipment piping, significantly enhancing impact resistance in high-pressure fluid environments. Protective tube materials include 304/316 stainless steel or specialty alloys for customized applications.
-
Extended Temperature Monitoring
With measurement range spanning from -50℃ to 500℃, the specially designed bimetallic helical coil maintains stable linear output characteristics across different temperature zones. The 270° wide-angle dial display achieves indication accuracy up to 1.5% of full scale.
-
Environmental Adaptability
IP65-rated sealed housing with integrated shock-absorbing components effectively minimizes vibration interference. The electrostatic-coated aluminum alloy casing provides superior corrosion resistance in harsh environments.
-
Simplified Installation
Modular construction allows independent installation and maintenance of thermal sleeve and measurement unit. Available in axial/radial mounting configurations to accommodate diverse observation requirements.
Application Scope
This instrument is particularly suitable for temperature monitoring in pipeline systems, reaction vessels, and heat exchange equipment within petrochemical, power generation, and manufacturing industries. Compatible with various media including steam, thermal oil, and compressed gases.
Technical Specifications
Measuring Range: -50-50/0-100/0-200/0-300/0-400/0-500℃ (selectable)
Accuracy: ±1.5% FS
Protection Tube Diameter: Φ12/Φ16mm (optional)
Connection Thread: M27×2/G3/4"NPT (optional)
Ambient Temperature: -20～80℃
Service Support
Customized parameter configuration services ensure optimal temperature measurement solutions for specific applications. Comprehensive after-sales support guarantees technical assistance throughout the product lifecycle.
