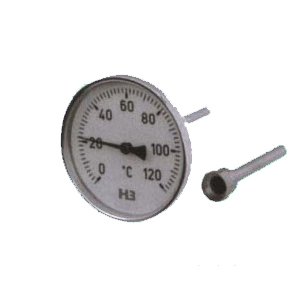

熱套式雙金屬溫度計WSS-403S 供應
產品概述
熱套式雙金屬溫度計WSS-403S是一種專為工業現場設計的溫度測量儀表，采用雙金屬片作為核心感溫元件，通過機械傳動直接顯示溫度數值。該產品可廣泛應用于液體、蒸汽、氣體介質及固體表面的溫度測量，測溫范圍覆蓋-80℃至+500℃，滿足多種工業場景需求。其設計結合了熱套式結構優勢，可配合不同安裝套管以適應高壓、高溫等復雜環境，確保穩定性和耐用性。表殼采用防水防腐蝕材質，防護等級達IP55，適合石油化工、電力、冶金等領域的長期使用。1520
技術特點
WSS-403S熱套式雙金屬溫度計具備快速熱響應能力（≤40秒），精度等級為1.5級，表盤直徑可選100mm或150mm，便于遠距離觀察。產品提供多種連接方式（如M20×1.5螺紋、NPT1/2等），并支持軸向、徑向或萬向型安裝，靈活適配不同管道或設備布局。保護管材質包括1Cr18Ni9Ti不銹鋼及316L等可選，耐腐蝕性強。熱套式設計允許在不停機、不降壓的情況下更換機芯，顯著提升維護效率，減少生產中斷風險。2712
應用場景
本產品適用于連續生產流程中的溫度監控，如鍋爐蒸汽管道、反應釜介質測溫、熱力設備保溫層外監測等。其無汞害特性優于傳統玻璃溫度計，且抗震性能出色，可在振動環境中長期穩定工作。此外，萬向型設計支持角度調節，便于在狹窄空間安裝并保持讀數可視性。用戶可根據實際需求選配法蘭或螺紋連接形式，并定制插入長度（如300mm），確保與現有系統無縫集成。61622
Product Introduction (English)
The WSS-403S Sheath-type Bimetallic Thermometer is designed for industrial temperature measurement, utilizing a bimetallic strip as the sensing element to provide direct mechanical indication. It covers a wide range of -80℃ to +500℃, suitable for liquids, steam, gases, and solid surfaces in sectors like petrochemicals and power plants. The sheath-type structure allows compatibility with various installation sleeves, enhancing adaptability to high-pressure or high-temperature environments. The housing features corrosion-resistant materials with IP55 protection, ensuring longevity in harsh conditions.1520
Key Features
With a fast thermal response (≤40s) and 1.5 accuracy class, the WSS-403S offers clear visibility via 100mm or 150mm dials. Multiple connection options (e.g., M20×1.5, NPT1/2) and installation types (axial, radial, or adjustable) provide flexibility. The protective tube materials (e.g., 1Cr18Ni9Ti) resist corrosion, while the sheath design enables core replacement without system shutdown, minimizing downtime. Its rugged construction ensures reliability in vibrating or humid environments.2712
Applications
Ideal for continuous processes such as boiler steam pipelines or reactor monitoring, this mercury-free thermometer outperforms glass alternatives in durability. The adjustable angle feature facilitates installation in confined spaces, and customizable insertion lengths (e.g., 300mm) ensure compatibility with diverse setups. Options for flange or threaded connections further simplify integration into existing systems.61622
熱套式雙金屬溫度計
WSSX-403L，WSSX-483L，WSS-483L，WSS-413L，WSS-413L，WSS-503L，WSS-403L，WSSX-483S，WSSX-413S，WSS-483S，WSS-513S，WSS-413S，WSS-503S，WSS-403S，WSSX-486
應用
熱套式雙金屬溫度計可配合各式安裝套管，滿足不同壓力等級要求�？梢灾苯訙y量各種生產過程中的 -80-+500 ℃范圍內液體、蒸汽和氣體介質以及固體表面測溫。
主要技術參數
標度盤公稱直徑：100
精度等級：1.0、1.5
連接尺寸：M20x1.5、NPT1/2
熱響應時間：≤40s
防護等級：IP55
注：
可配各式安裝套管，熱安裝套管形式詳見熱安裝套管；
保護管其余材質根據協議訂貨；
打﹡表示公稱壓力根據法蘭壓力等級而訂。
選型須知
型號
精度等級
測溫范圍
安裝固定形式
熱安裝套管形式
插入長度
例A：萬向型雙金屬溫度計，測溫范圍0-400℃。熱安裝套管TH01F，插入長度300mm.即為：WSS-483TH01F 0-400℃ l=300mm.
|
