熱套式雙金屬溫度計WSS-413S 價格
中文介紹

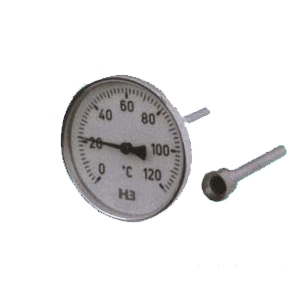

WSS-413S熱套式雙金屬溫度計是一種廣泛應用于工業領域的溫度測量儀表。它能夠直接測量生產過程中-80℃至+500℃范圍內的液體、蒸汽和氣體介質以及固體表面的溫度。該溫度計配合多種安裝套管，可滿足不同壓力等級的要求，適用于多種復雜工況。
其主要特點包括現場顯示溫度，直觀方便，且具有自動切斷電源和報警功能，安全可靠，使用壽命長。此外，該溫度計的標度盤公稱直徑為100mm，精度等級有1.0級和1.5級可選，連接尺寸為M20×1.5或NPT1/2，熱響應時間為40秒，防護等級達到IP55。
在價格方面，由于其規格型號多樣，具體價格需要根據客戶需求進行定制。例如，不同的測溫范圍、精度等級、保護管材料以及安裝固定形式等都會影響價格�？傮w而言，WSS-413S熱套式雙金屬溫度計以其可靠的性能和靈活的配置，為工業溫度測量提供了一種經濟實用的選擇。
English Introduction
The WSS-413S bimetallic thermometer is a widely used industrial temperature measuring instrument. It can directly measure the temperature of liquids, vapors, and gas media, as well as solid surfaces, within the range of -80℃ to +500℃. This thermometer can be used with various installation sleeves to meet different pressure requirements, making it suitable for a variety of complex working conditions.
Its main features include on-site temperature display, which is intuitive and convenient. It also has functions of automatic power cut-off and alarm, ensuring safety and reliability, as well as a long service life. In addition, the thermometer has a dial diameter of 100mm, with accuracy classes of 1.0 and 1.5 available. The connection dimensions are M20×1.5 or NPT1/2, the thermal response time is 40 seconds, and the protection rating reaches IP55.
Regarding price, due to the diverse specifications and models, the specific price needs to be customized according to customer requirements. For example, different temperature ranges, accuracy classes, protective tube materials, and installation fixing forms will all affect the price. Overall, the WSS-413S bimetallic thermometer provides an economical and practical choice for industrial temperature measurement with its reliable performance and flexible configuration.
熱套式雙金屬溫度計
WSSX-403L，WSSX-483L，WSS-483L，WSS-413L，WSS-413L，WSS-503L，WSS-403L，WSSX-483S，WSSX-413S，WSS-483S，WSS-513S，WSS-413S，WSS-503S，WSS-403S，WSSX-486
應用
熱套式雙金屬溫度計可配合各式安裝套管，滿足不同壓力等級要求�？梢灾苯訙y量各種生產過程中的 -80-+500 ℃范圍內液體、蒸汽和氣體介質以及固體表面測溫。
主要技術參數
標度盤公稱直徑：100
精度等級：1.0、1.5
連接尺寸：M20x1.5、NPT1/2
熱響應時間：≤40s
防護等級：IP55
注：
可配各式安裝套管，熱安裝套管形式詳見熱安裝套管；
保護管其余材質根據協議訂貨；
打﹡表示公稱壓力根據法蘭壓力等級而訂。
選型須知
型號
精度等級
測溫范圍
安裝固定形式
熱安裝套管形式
插入長度
例A：萬向型雙金屬溫度計，測溫范圍0-400℃。熱安裝套管TH01F，插入長度300mm.即為：WSS-483TH01F 0-400℃ l=300mm.
|
