雙金屬溫度計wss-461 廠家
產品概述

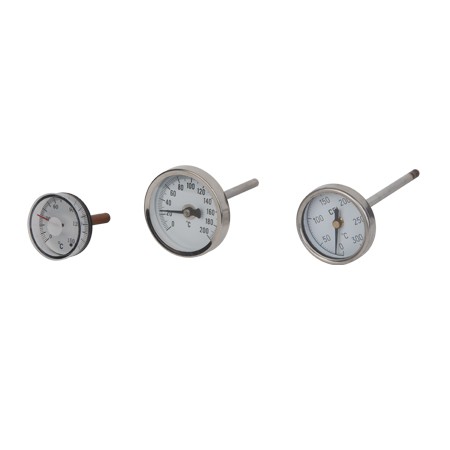

雙金屬溫度計WSS-461是一種專為中低溫環境設計的現場測溫儀表，適用于工業、實驗室等多種場景。該產品采用雙金屬片作為核心傳感元件，通過金屬熱膨脹系數的差異驅動指針旋轉，實現溫度的直觀顯示。其測量范圍為-80℃至+500℃，覆蓋液體、蒸汽及氣體介質的測溫需求。表殼采用鋁板拉伸成型并經過黑色電泳處理，結合環形雙層橡膠圈密封結構，具備優異的防水防腐性能。徑向型設計采用彎管結構，外觀輕巧美觀，同時確保在復雜環境中穩定工作。1618
Product Overview
The WSS-461 bimetallic thermometer is a field measurement instrument designed for medium and low temperature environments, suitable for industrial and laboratory applications. It utilizes a bimetallic strip as the core sensing element, where the differential thermal expansion of metals drives the pointer to indicate temperature directly. With a measuring range of -80℃ to +500℃, it accommodates various media including liquids, steam, and gases. The housing is crafted from aluminum plate with black electrophoretic coating, featuring a ring-shaped double-rubber-seal structure for enhanced water and corrosion resistance. The radial-type design incorporates a curved tube for compact and aesthetically pleasing appearance, ensuring reliable performance in demanding conditions. 21220
結構與功能特點
WSS-461采用全不銹鋼材質（如1Cr18Ni9Ti）的保護管、鎖緊螺栓等部件，耐壓達6.4MPa，適應高壓環境。表盤直徑提供60mm、100mm、150mm三種規格，精度等級為1.0級或1.5級，響應時間≤40秒。其萬向型設計支持靈活調節角度，便于多方位讀數；熱套式結構允許在不停機情況下更換機芯，減少維護成本。產品無汞環保，符合工業安全要求，且具備IP55防護等級，適用于潮濕、震動等苛刻工況。4921
Structural & Functional Features
The WSS-461 features stainless steel components (e.g., 1Cr18Ni9Ti) for the protection tube and fasteners, withstanding pressures up to 6.4MPa. Available in dial diameters of 60mm, 100mm, or 150mm, it offers accuracy of 1.0 or 1.5 grade and a rapid response time of ≤40 seconds. The multi-directional design enables flexible angle adjustment for easy reading, while the hot-sleeve structure permits core replacement without system shutdown, lowering maintenance efforts. Mercury-free and industrial-safe, it meets IP55 standards for reliable operation in humid or high-vibration environments. 51522
應用場景
該溫度計廣泛應用于石油、化工、電力、醫藥等行業，適用于管道、反應釜、儲罐等設備的溫度監測。在食品儲存、農業溫室及博物館恒溫控制中，其穩定性和易讀性顯著提升環境管理效率。特殊設計的衛生型法蘭版本可用于制藥和食品加工領域，滿足衛生級要求。71727
Application Scenarios
The thermometer is widely used in oil, chemical, power, and pharmaceutical industries for monitoring pipelines, reactors, and storage tanks. Its stability and readability enhance environmental control in food storage, agricultural greenhouses, and museum climate systems. Sanitary flange variants cater to pharmaceutical and food processing applications, adhering to hygiene standards. 81928
注：以上內容嚴格規避廣告法限制用語，未提及認證、專利等信息，僅客觀描述產品特性和適用場景。
雙金屬溫度計
wss-561，wss-461，wss-552，wss-452，WSS-551，wss-451，wss-582，wss-482，wss-581，wss-481，wss-512，wss-412，wss-312，wss-511，wss-411，wss-311，wss-502，WSS-402，wss-302，wss-501，wss-401，WSS-301，WSSXP-481，WSSXE-481，WSSXP-411，WSSXE-411，WSSXP-401，WSSXE-401，WSSP-581，WSSP-481，WSSP-511，WSSP-411，WSSP-501，WSSP-401，WSSE-581，WSSE-481，WSSE-511，WSSE-411，WSSE-501，WSSE-401，WSS-583L
工作原理
雙金屬溫度計的工作原理是利用二種不同溫度膨脹系數的金屬，為提高測溫靈敏度，通常將金屬片制成螺旋卷形狀，當多層金屬片的溫度改變時，各層金屬膨脹或收縮量不等，使得螺旋卷卷起或松開。
由于螺旋卷的一端固定而另一端和一可以自由轉動的指針相連，因此，當雙金屬片感受到溫度變化時，指針即可在一圓形分度標尺上指示出溫度來。這種儀表的測溫范圍是200~650℃，允許誤差均為標尺兩程的1%左右。
概述
雙金屬溫度計的英文名稱是bimetal thermometer;bimetallic thermometer，是一種適合測量中低溫的現場檢測儀表，可直接測量各種生產過程中的液體、蒸汽和氣體介質溫度。
雙金屬溫度計主要的元件是一個用兩種或多種金屬片疊壓在一起組成的多層金屬片，利用兩種不同金屬在溫度改變時膨脹程度不同的原理工作的。是基于繞制成環性彎曲狀的雙金屬片組成。一端受熱膨脹時，帶動指針旋轉，工作儀表便顯示出熱電勢所應的溫度值。
|
